Welcome to what we believe is the most complete guide to electric saildrive and pod boat motors. It provides top line details for more than 150 individual motors sorted by power range, style and usage. It has been assembled to provide a single place where someone interested in electric marine propulsion can find comparative information for motors made all over the world.
You may also be interested in our other guides
»» Guide to Electric Outboards Under 5kW
»» Guide to Electric Outboards Over 5kW
»» Guide to Electric Inboards
»» Guide to Electric Trolling Motors
»» Guide to Electric Boat Batteries
»» Plugboats also has the world’s largest and most complete Directories of over 600 electric boats, motors, batteries, accessories, solar panels and rental/charter companies
Information on using this Plugboats Guide
Information on this page updated February 4, 2024
You may also want to check our Directory of Electric Boat Motor manufacturers, dealers and distributors around the world, or the Plugboats Marketplace of electric boat motors for sale.
Manufacturers in this Buying Guide: Aquamot • Bellmarine • Combi • Electric Yacht • ELECTRINE • EP Technologies • ePropulsion • E-TECH • Fischer Panda • Gardenergy • Kräutler • Navigaflex • Oceanvolt • Piktronik • Rim Drive Technology • Seadrive • TEMA • Torqeedo
Illustrated Guide
Aquamot
Aquamot was founded in 2003 by engineer Siegmund Hammerstrom and has grown to be a leading manufacturer of electric motors and accessories, including outboards inboards, chargers and batteries. They have two lines of fixed pod motors: Trend and Professional, as well as a line of steerable pods that line up with the power ranges of the Professional line.
Aquamot Trend Fixed Pod 1.1FM and 1.6FM
![](images/aqamot-trend-fixed-pod-motor-1b73d.jpg?resize=257%2C282&ssl=1)
- Recommended Boat Size: <1.8 tons
- kW: 1.1 / 1.6 • Voltage: N/A • Current: N/A • HP: 3.5 / 5 • Static thrust: 89lbs
- Motor Type: Brushless AC asynchronous • Passive water cooled (motor underwater)
- Weight (kg): 10.2 / 11.3
- Propeller/RPM: 3 blade fixed, folding optional • RPM: N/A
- Other: Includes: Integrated/removable lithium battery (0.64kWh), charger, display, emergency kill switch. Optional: spare battery, customized compensation wedge, folding propeller ($US 835). Warranty: 2 year limited
- Country of Manufacture: Austria
- Price (MSRP): $US 2,200 / $2,600
Aquamot Trend Fixed Pod 2.2FM and 4.3FM
![](images/aqamot-trend-fixed-pod-motor-1b73d.jpg?resize=257%2C282&ssl=1)
- Recommended Boat Size: <4 tons
kW: 2.2 / 4.3 • Voltage: 24 / 48 • Current: N/A • HP: 6.4 / 11 • Static thrust: 124 lbs / 197 lbs - Motor Type: Brushless AC asynchronous• Passive water cooled (motor underwater)
Weight (kg): 12.2 / 13.9 - Propeller/RPM: 3 blade fixed, folding optional • RPM: N/A
- Other: Includes: Controller, display, basic cables, emergency kill switch. Optional: customized compensation wedge, folding propeller ($US 835). Two year limited warranty.
- Country of Manufacture: Austria
- Price (MSRP): $US 3,300 / $3,750
Aquamot Trend Fixed Pod 11.0FM to 25.0FM
![](images/aqamot-trend-fixed-pod-motor-1b73d.jpg?resize=257%2C282&ssl=1)
- Recommended Boat Size: N/A
- kW: 11 – 25 • Voltage: 48 – 96 • Current: N/A • HP: 28 – 45 • Static thrust: n/a
- Motor Type: Brushless AC asynchronous• Passive water cooled (motor underwater)
- Weight (kg): 44.3 – 48.9
- Propeller/RPM: 3 blade fixed • RPM: N/A
- Other: Includes: Controller, display, basic cables, emergency kill switch. Optional: customized compensation wedge. Warranty: 2 year limited
- Country of Manufacture: Austria
- Price (MSRP): $US 7,150 / $9,915
Aquamot Professional Fixed Pod F10e to F250e
![Aquamot-fixed-pod-electric-boat-motor](images/aquamot-electric-fixed-pod-motor-package344c.jpg?resize=293%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 1 – 25 • Voltage: 24 – 96 • Current: N/A • HP: 45 – 339 • Static thrust: n/a
- Motor Type: Sensor-less AC asynchronous • Passive water cooled (motor underwater) • Efficiency: 92%
- Weight (kg): 12 – 50
- Propeller/RPM: 2 blade fixed, folding/feathering optional • RPM: N/A
- Other: Integrated anode, permanently usable for salt or fresh water, maintenance free. Operating efficiency 92%, Included: Custom-made compensation wedge, Controller, throttle, battery monitor, cables, Optional: display, folding/feathering propeller. Warranty: 2 year limited
- Country of Manufacture: Austria
- Price: N/A
Aquamot Trend Steerable Pod UF10e to UF250e
![Aquamot steerable pod electric boat motor](images/aquamot-steerable-pod-electric-boat-motora052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 1 – 25 • Voltage: 24 – 96 • Current: N/A • HP: 45 – 339 • Static thrust: n/a
- Motor Type: Sensor-less AC asynchronous • Passive water cooled (motor underwater) • Efficiency: 92%
- Weight (kg): 12 – 50
- Propeller/RPM: 2 blade fixed, folding/feathering optional • RPM: N/A
- Other: Optimized cavitation plate. Permanently usable for salt or fresh water, maintenance free. Operating efficiency 92%, Included: Custom-made compensation wedge, Controller, throttle, battery monitor, cables, Optional: display. Warranty: 2 year limited
- Country of Manufacture: Austria
- Price: N/A
Bellmarine
»» Bellmarine website
Bellmarine is a very well established electric boat motor company with a history going back to 1999. Along the way they merged with a battery accessory manufacturer and have now been purchased by Transfluid, a large scale industrial motor manufacturer. Bellmarine offers a wide range of electric boat motor configurations, with their saildrive system consisting of their own motor combined with Yanmar drive mechanics. They range from 2kW to 20kW in power with either air or liquid cooling. They also offer a regeneration option. You may want to download the full Bellmarine catalogue
Bellmarine SailMaster Air Cooled Models 2A, 5A, 7A, 10A, 15A, 20A
Download .pdf brochure
![Bellmarine electirc boat motor with Yanmar drive and controller](images/bellmarine-yanmara052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: Bellmarine uses Nominal and Intermittent kW measurements. These are the intermittent figures: 2, 5, 7, 8, 10, 15, 20 • Voltage: 48V except for the 8A, 15A and 20A models which are 96V • Current: N/A • HP: 2.5, 6.5, 9, 10.5, 13, 20, 25
- Motor Type: Permanent Magnet AC • Air cooled
- Weight (kg): N/A
- Propeller/RPM: propeller not supplied • RPM: Motor: 1500, Propeller 750 except for 20kW which is Motor 3000, Propeller 1500
- Other: Includes Yanmar SD25 Sail drive leg with 2:1 reduction, motor, controller, , stainless steel motor support brackets.
- Country of Manufacture: Netherlands
- Price: N/A
Bellmarine SailMaster Liquid Cooled Models 3W, 7W, 10W, 15W, 20W
Download .pdf brochure
![Bellmarine water-cooled electric boat motor with Yanmar drive and controller](images/bellmarine-yanmar-liquid-cooleda052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: Bellmarine uses Nominal and Intermittent kW measurements. These are the intermittent figures: 3, 7, 10, 15, 20 • Voltage: 48V: for all models except 8A, 15A and 20A – 96V: Models 8A, 15A, 20A • Current: N/A • HP: 4, 9, 13, 20, 25
- Motor Type: Permanent Magnet AC • Liquid cooled
- Weight (kg): N/A
- RPM: 1500: Models 2A, 5A, 7A, 8A, 10A, 15A – 3000: Model 20A
- Other: Includes Yanmar SD25 Sail drive leg with 2:1 reduction, motor, controller, , stainless steel motor support brackets.
- Country of Manufacture: Netherlands
- Price: N/A
Combi
»» Combi website
Combi Outboards was founded in 1979 in Giethoorn (‘the Dutch Venice’) to supply rental boats with clean electric power. It is now a leading international supplier of electric propulsion solutions for the maritime market. Combi manufactures inboards, pods, hybrids and outboards. There are six pods ranging in power from 1kW to 3.5 kW: 1, 1.5, 2, 2.5, 3 and 3.5kW. They are available both as fixed pod or steerable pods.
Combi Nautic Fixed Pod/Saildrive
Download .pdf brochure
![Combi Nautic Electric Boat Motor Fixed Pod Saildrive](images/combi-fixed-pod-saildrive3dcc.jpg?resize=297%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 1.0 – 3.5 • Voltage: 24 (1.0kW + 1.5kW), 48 (2.0kW – 3.5kW) • Current: 42A – 73A • HP: 4 – 9
- Motor Type: Asynchronous AC • passive water cooled
Weight (kg): N/A - Propeller/RPM: 3 blade fixed – 220mm or 230mm • RPM: 1050 (3.5kW 1300)
Other: “Easy Connect” system delivered Plug & Play for owner installation. - Country of Manufacture: Netherlands
- Price: N/A
Combi Nautic Steerable Pod
Download .pdf brochure
The Steerable Pod Nautic models have the same specifications as the Saildrive models above.
![Combi Nautic Electric Boat Motor Steerable Pad](images/combi-steerable-pod0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 1.0 – 3.5 • Voltage: 24 (1.0kW + 1.5kW), 48 (2.0kW – 3.5kW) • Current: 42A – 73A • HP: 4 – 9
- Motor Type: Asynchronous AC • passive water cooled
- Weight (kg): N/A
- Propeller/RPM: 3 blade fixed – 220mm or 230mm • RPM: 1050 (3.5kW 1300)
- Other: “Easy Connect” system delivered Plug & Play for owner installation.
- Country of Manufacture: Netherlands
- Price: N/A
Electric Yacht
Electric Yacht is one of the premier US suppliers of saildrives. They have developed a Plug-n-Play system that has been engineered for quick, simplified installation as well as long term durability. Their systems offer regenerative power while under the sail. 10 years of proven production with over 450 installs. 3 Year Warranty
Electric Yacht QuietTorque™ 10.0 Sail Drive
![Electric Yacht electric boat motor](images/electracraft-10-electric-boat-motora052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: <6 tons – 34’ (10m)
- kW: 10 • Voltage: 48 • Current: 200A • HP: 10.5
- Motor Type: Brushless PMAC
- Weight (kg): 45
- Propeller/RPM: 2 or 3 blade, fixed or folding, 12” – 16” • RPM: N/A
- Other: Installs through 9” hole, Anodized aluminum frame and waterproof throttle,Digital Display of: State of Charge (SOC, Voltage, Current, Power, Motor RPM, time to discharge based on current power consumption, updated in real time, Programmable regeneration. 3 Year Warranty.
- Country of Manufacture: USA
- Price (MSRP): $US 11,995
Electric Yacht QuietTorque™ 20.0 Sail Drive
The Electric Yacht Quiet Torque 20 is essentially the 10.0 with twin motors
![Electric Yacht electric boat motor with two motors on one drive](images/electracraft-20-electric-boat-motora052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: <12 tons – 45’ (14m), catamarans 40’-46’ (12-15m)
- kW: 20 • Voltage: 48 • Current: 400A • HP: 21
- Motor Type: Brushless PMAC X 2
- Weight (kg): 77
Propeller/RPM: 2 or 3 blade, fixed or folding, 12” – 18” • RPM: N/A - Other: Installs through 9” hole, Anodized aluminum frame and waterproof throttle,Digital Display of: State of Charge (SOC, Voltage, Current, Power, Motor RPM, time to discharge based on current power consumption, updated in real time, Programmable regeneration. 3 Year
- Warranty.
- Country of Manufacture: USA
- Price (MSRP): $US 14,695
Also:
Electric Yacht QuietTorque™ 30.0 Sail Drive (boats <14 tons)
Electric Yacht QuietTorque™ LC 45 Sail Drive (boats <17 tons)
Electric Yacht QuietTorque™ LC 60.0 Sail Drive (boats <22 tons)
![Two Electric Yacht electric boat motors on a saildrive](images/electric-yacht-electric-boat-motor-liquid-cooleda052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: 14 tons – 22 tons, 45’- 60′ (15-18m)
- kW: 30 – 60 • Voltage: 48 – 96 • Current: 300Ah – 600Ah • HP: 48 – 65
- Motor Type: Brushless PMAC X 2 • liquid cooled
- Weight (kg): 100 – 106
- Propeller/RPM: N/A
- Other: Installs through 9” hole, Anodized aluminum frame and waterproof throttle, Digital Display of: State of Charge (SOC, Voltage, Current, Power, Motor RPM, time to discharge based on current power consumption, updated in real time, Programmable regeneration. 3 Year
Warranty. - Country of Manufacture: USA
- Price (MSRP): $US 19,995 – 23,495
ELECTRINE
»» ELECTRINE website
ELECTRINE is a Korean manufacturer which has focused on maritime electrification since 2010, when the idea of electric mobility was still relatively uncommon. The company was known as LGM until 2020 and has had a consistent R&D effort for many years. They manufacture electric outboards, inboards and saildrives as well as accessories and Lithium-ion batteries using a Carbon Nano Tube heat exchanger technology. Ther are 6 motors in their eSaildrive line, ranging from 8 kW to 110 kW.
ELECTRINE eSaildrive line: S-8, S-16, S-25 (shown), S-40, S-80, S-110
![](images/electrine-s-25-saildrive62b6.jpg?resize=300%2C349&ssl=1)
- Recommended Boat Size: Daysailer / Racing / Monohull /Multihull
- kW: (Max) 8, 16, 25, 40, 90, 110 • Voltage (Vdc): 48, 48, 96, 96, 345.6, 345.6
- Motor Type: N/A
- Weight (kg): 40.5, 46.5, 50.5, 172, 198, 218
- Other: Hydrogeneration on 8kW and 16kW models. ELECTRINE also makes batteries customized for the motors
- Country of Manufacture: Korea
- Price (MSRP): N/A
EP Technologies
»» EP Technologies website
EPTechnologies is a complete marine propulsion provider for electric and hybrid vessels. The company specializes in custom electric and hybrid systems, but also has ‘off the shelf’ motors, including a range of saildrives. Their Electric Turnable Saildrive offers 360-degree rotation, the key advantage being that no additional thruster is required behind the boat. Other saildrives (SD-25, SD-60, SD-15) have a fixed lower unit. All saildrives are include a complete system utilizing batteries designed and built by EP Technologies.
EP Technologies Turnable Saildrive
![](images/ep-technologies-turnable-sd41c2.png?resize=250%2C300&ssl=1)
- kW: 25 – 60
- Voltage (VDC): 100 – 800
- RPM: 500 – 2000
- Other: 360° Rotatable, Electric servo motor, Joystick Control
- Country of Manufacture: Denmark
- Price: Contact EP Technologies
EP Technologies Saildrives: SD-25, SD-50, SD-15
![](images/ep-technologies-sd-60sd4d50.png?resize=252%2C302&ssl=1)
- kW: SD-25: SD-60: 25, 39, 60, SD-15: 65, 95
- Voltage (VDC): SD-25: 48, SD-60: 100 – 800, SD-15: 400 – 800
- RPM: SD-25: 1000 – 2000, SD-60: 500 – 2000, SD-15: 500 – 2000
- Country of Manufacture: Denmark
- Price: Contact EP Technologies
ePropulsion
»» ePropulsion website
ePropulsion was founded in 2012 by three engineers from the Hong Kong University of Science and Technology (HKUST). The company continues to have a strong engineering culture where each engineer is individually responsible for creating as much value for users as possible. ePropulsion offer two pod models based on their outboards: the 1kW Spirit and 3kW Navy.
Click here to view motors from ePropulsion dealers in the Plugboats Marketplace
ePropulsion Pod Drive Evo 1.0, 3.0, 6.0
![](images/epropulsion-navy-6.0-pod-evoff37.jpg?resize=248%2C293&ssl=1)
- Recommended Boat Size: N/A
- kW: 1, 3, 6 • Voltage: 40.7, 48 • Current: 25A, 62.5A • HP: 3, 6, 9.9 Static Thrust: 71, 132.6
- Motor Type: N/A
- Weight (kg): (Including integrated battery) 14.1, 15.6
- Propeller/RPM: Spirit: 2 blade, 28 × 14.7 cm (11′ × 5.8″), Navy: 2 blade, 26 × 17.1 cm (10.2″ × 6.7″), RPM: Spirit 1200, Navy 2300
- Other: Hydrogeneration, Includes battery and wireless remote controller (cable option also), Spirit has 1.1 kWh lithium battery, Navy has 3.0 kWh
- Country of Manufacture: Hong Kong/China
- Price (MSRP): N/A
E-TECH
»» E-TECH website
E-TECH is a subsidiary of boatbuilder Starboats that was started in 2008 because they were dissatisfied with other electric motor offerings in the market at the time. The company has developed fixed pods, steerable pods and outboard motors that all utilize an in-water BLDC (BrushLess DC permanent magnet) pod motor in a watertight aluminum casing. There are 5 pod models available in both fixed pod and steerable pod configuration. All of these are equipped with the ruddershaft, tube and steering lever. There are also 4 models of high torque pods available only in fixed pod format.
Click here to view motors from E-TECH dealers in the Plugboats Marketplace
E-TECH 4 POD, 7 POD, 10 POD, 15 POD, 20 POD
Link to Fixed Pod Motors • Link to Steerable Pod Motors
Download .pdf brochure
![E-Tech electric boat motor steerable pod with handle](images/e-tech-electric-boat-motor-steerable-poda052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 4.3, 7.5, 10.9, 16.6, 19.5 • Voltage: 48, 48, 48, 72, 96 • HP: ≈ 6, 10, 15, 22, 27 • RPM: 1350, 1350, 1470, 2240, 2200
- Motor Type: Brushless PMDC • water cooled
- Weight (kg): N/A
- Other: Includes controller, display with battery monitor, joystick (side- or top mounting), 2m steering cable, 5m connecting cables between controller and steering position (standard 5 meter).
- Country of Manufacture: Poland
The four High Torque E-TECH PODH engines are designed for those applications where a very high torque is needed.
E-Tech High Torque PODH: 13 POD, 18 POD, 23 POD, 35 POD
Download .pdf brochure
![E-Tech electric boat motor high torque pod with no steering handle](images/e-tech-electric-boat-motor-hi-torque-poda052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 11.9, 16.7, 21.5, 33.7 • Voltage: 48, 72, 96, 144 • HP: ≈ 16, 23, 29, 45 • RPM: 760, 1140, 1520, 2500
- Motor Type: Brushless PMDC • water cooled
- Weight (kg): N/A
- Other: Includes controller, display with battery monitor, joystick (side- or top mounting), 2m steering cable, 5m connecting cables between controller and steering position (standard 5 meter).
- Country of Manufacture: Poland
Fischer Panda
Fischer Panda is one of the world’s best known manufacturers of marine generators but are also manufacturers of high quality electric boat motors, sometimes marketed under the ‘Whisperprop’ name. They have an “EasyBox” system that is intended to take the guesswork and complication out of purchasing electric boat motors.
Fischer Panda 48V Underwater Drive System (Easybox)
Download .pdf brochure
![Fisher Panda electric boat motor - pod with and without prop guard](images/fischer-panda-48v-pod-with-guard-10a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 3.8 – 20.0 • Voltage: 48 • Current: N/A • HP: 5 – 25
- Motor Type: Brushless Permanent Magnet (PMAC)
- Weight (kg): 18.7 – 120
- Propeller/RPM/Torque: Propeller not included • RPM: 600 – 2500 Torque (nM): 28 – 320
- Other: Includes: Fischer Panda EasyBox control unit, control panel, throttle Options: Propeller, propeller protector, battery bank, charger, shore power connection.
- Country of Manufacture: Germany
- Price (MSRP): N/A

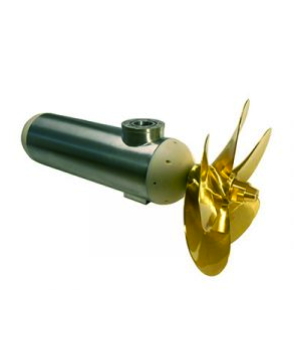

Fischer Panda EasyBox HV High Voltage System
Fischer Panda Download Centre
![Fisher-Panda Electric Pod Boat Motor High Voltage](images/fischer-panda-high-voltage-podefa3.jpg?resize=298%2C351&ssl=1)
- Recommended Boat Size: <40 tons
- kW: 50, 80, 100 • Voltage: 360 – 420 • Current: N/A • HP: 65 – 125
- Motor Type: N/A
- Weight (kg): 42
- Propeller/RPM/Torque: 5 blade fixed • RPM: 1200 / 1900 Torque (nM): 398 – 400
- Other: These motors are generally designed for use by small public transportation ferries, commercial working vessels and privately owned leisure yachts. Systems should be customized.
- Country of Manufacture: Germany
- Price (MSRP): N/A
Gardenergy
»» Gardenergyy website
Gardenergy is an Italian company established to offer ‘a simple and reliable product featuring cutting-edge technology’. They use the same motors in a variety of ways, cleverly configuring them for outboard, inboard shaft drives, and either fixed pods or steerable pods.
Gardenergy Pod
To see options and download .pdf brochures, go the Gardenergy site and click on ‘Links’. A pop up will appear with options. There is also an option for price list and a Configurator which can help with system assembly and pricing.
There are five Gardenergy pods with power input of: 2kW, 4.3 kw, 6kW, 8kw, 10kW. They are available as fixed or steerable pods.
![Gardenergy electric boat motor pod with and without tiller handle](images/gardenergy-electric-boat-motor-poda052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 2, 4.3, 6, 8, 10 • Voltage: 48 except for 2kW which is 24V • Current: N/A • HP: 2.5, 5.5, 7.5, 10, 13
- Motor Type: PMAC
- Weight (kg): N/A
- Propeller/RPM/Torque: 3 blade fixed, folding available • RPM: 2kW: N/A, 4.3kW: 1450, 6kw: 1600, 8kW: 1750, 10kW: 1950
- Other: Includes controller, display with battery monitor, joystick (side- or top mounting), 2m steering cable, 5m connecting cables between controller and steering position (standard 5 meter).
- Country of Manufacture: Italy
- Price (MSRP): Download MSRP Price List $US 3,975 – 6,625
Kräutler
»» Kräutler website
Kräutler is a long-established Austrian manufacturer of industrial electric motors. They began construction of electric boat motors in the 80’s mainly because they could not find a product that would live up to the standards of founder Oswald Kräutler. They make motors for industrial and ship use as well as recreational boats and probably offer the widest range of sailpods and saildrives on this page with everything from small .5kW steerable pods to electrically rotatable saildrives with power up to 30kW.
An explanation about the Kräutler section of this guide:
The Kräutler fixed pods are available with AC motors (ACV) or DC motors (GPV). The AC are for smaller boats. They also come in two different configurations: fixed propeller and folding propeller. In the interests of making this page shorter, we have divided them in to the motor types for the written descriptions but have shown you the fixed and folding options in the images. In the table each of the motors has a separate listing. NOTE: The GPV motors are only suitable for short use in salt water.
Krautler Submersible Flange Motor Pods with DC motors
Download .pdf brochure
![Krautler pod electric boat motor with accessories](images/krautler-fixed-pod-fixed-prop2a052.jpg?resize=300%2C350&ssl=1)
- MOTOR TYPE: GPV
- Recommended Boat Size: <1.9 tons
- kW: 0.5, 0.8, 1.6, 2.2 • Voltage: 24 except for 2.2kW which is 36V • Current: 21, 34, 67, 61 • HP: 0.5, 1.0, 1.8, 2.5
- Motor Type: GPV: DC motor with permanent magnets, continuous control
- Weight (kg): 14, 15, 20, 20
- Propeller/RPM/Torque: 3 blade fixed or folding (see intro note above) • RPM: N/A • Torque: N/A
- Other: ATTENTION: GP motors are only suitable for short use in salt water. Includes: Motor, bracket, electric regulation system, throttle, status display monitor, battery monitor, cables, battery master switcher & fuse, propeller, anode. Operating efficiency 85%
- Country of Manufacture: Austria
- Price (MSRP):
Krautler Submersible Flange Motor Pods with AC Motors
Download .pdf brochure
![Krautler pod electric boat motor with folding propeller and eaccessories](images/krautler-fixed-pod-folding-propa052.jpg?resize=300%2C350&ssl=1)
- MOTOR TYPE: ACV
- Recommended Boat Size: <10 tons
- kW: 1.8, 2.0, 4, 8, 10 • Voltage: 24 (1.8, 2.0kW) 48 (4, 8, 10kw) • Current: 100, 107, 104, 202, 250 • HP: 2.3, 2.5, 5, 10, 13
- Motor Type: ACV: AC brushless three phase asynchronous motor
- Weight (kg): 21, 29, 29, 40, 50
- Propeller/RPM/Torque: 3 blade fixed or folding (see intro note above) • RPM: N/A • Torque: N/A
- Other: Includes: Motor, bracket, electric regulation system, throttle, status display monitor, battery monitor, cables, battery master switcher & fuse, propeller, anode. Operating efficiency 75% – 83%
- Country of Manufacture: Austria
- Price (MSRP):
Krautler Submersible Pod with Tiller Handle
Download .pdf brochure
![Krautler pod electric boat motor with tiller handle](images/krautler-steerable-pod-tillera052.jpg?resize=300%2C350&ssl=1)
- MOTOR TYPE: ACV or GP
- Recommended Boat Size: Sailboat: <10 tons, Powerboat: <6 tons
- kW: 0.5 – 10 • Voltage: 24, 48 • Current: 21 – 250 • HP: 0.5 – 13
- Motor Type: ACV: AC brushless three phase asynchronous motor • GP: permanent magnet with continuous control
- Weight (kg): 15 – 54
- Propeller/RPM/Torque: 3 blade fixed • RPM: N/A • Torque: N/A
- Other: Includes: Motor, bracket, electric regulation system, throttle, status display monitor, battery monitor, cables, battery master switcher & fuse, propeller, anode. Tubes/diaphragms available for installation. Standard shaft length: 450mm. Operating efficiency 75% – 85%
- Country of Manufacture: Austria
- Price (MSRP):
Krautler Saildrive Compact
Download .pdf brochure
![Krautler Electric Boat Motor Saildrive-Compact](images/krautler-saildrive-compact0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: <4 tons
- kW: 2.0, 3.0, 4.0 • Voltage: 24, 36, 48 • Current: 104, 100, 99 – 250 • HP: 0.5 – 13
- Motor Type: AC brushless three phase asynchronous motor with continuous control
- Weight (kg): 42, 42, 42,
- Propeller/RPM/Torque: Propeller not included • RPM: N/A • Torque: N/A
- Other: ATTENTION: SDK drives are only suitable for short use in salt water. Includes: Motor, saildrive gear, base plate for lamination (depending on motor size), electric regulation system, throttle, status display monitor, battery monitor, cables, battery master switcher & fuse. Operating efficiency 80%, 83%, 84%
- Country of Manufacture: Austria
- Price (MSRP):
Krautler Saildrive Fixed
Download .pdf brochure
![Krautler Electric Boat Motor Fixed Saildrive](images/krautler-saildrive-fixed0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: Sailboat: <30 tons, Powerboat <12 tons
- kW: 2.5 – 30.0 • Voltage: 24 – 144 • Current: 104 – 370 • HP: 3.5 – 40
- Motor Type: AC brushless three phase asynchronous motor with continuous control. MOTORS 15.0 – 30.0kW are water cooled.
- Weight (kg): 45 – 91
- Propeller/RPM/Torque: Propeller not included • RPM: N/A • Torque: N/A
- Other: ATTENTION: Water cooled drives are only useable in seawater with 2-circle water cooling. ATTENTION: SDK drives are only suitable for short use in salt water. Includes: Motor, saildrive gear, base plate for lamination (depending on motor size), electric regulation system, throttle, status display monitor, battery monitor, cables, battery master switcher & fuse. Operating efficiency 85% – 88%
- Country of Manufacture: Austria
- Price (MSRP):
Krautler Saildrive Mechanical Rotatable: 2 x 45°
Download .pdf brochure
![Krautler Electric Boat Motor Saildrive Mechanical Rotatable: 2 x 45°](images/krautler-saildrive-mechanical-rotatable0a2d.jpg?resize=298%2C350&ssl=1)
All of the Krautler motors with specs shown in the fixed saildrives above can be installed with a mechanical rotatable option shown here or electric rotatable option shown below. The Sail-Drive is supplied with a fiberglass foundation base, which can be laminated to the hull (depending on motor size). For existing Volvo and Yanmar foundations the Sail-Drive is equipped with an adapter plate and can be screwed directly on the existing foundation.
Krautler Saildrive Electric Rotable: 2 x 90° or 360°
Download .pdf brochure
![Krautler-Saildrive Electric Boat Motor Saildrive Electrically Rotatable](images/krautler-saildrive-electrical-rotatable0a2d.jpg?resize=298%2C350&ssl=1)
All of the Krautler motors with specs shown in the fixed saildrives above can be installed with an electric rotatable option shown here. The Sail-Drive is supplied with a fiberglass foundation base, which can be laminated to the hull (depending on motor size). For existing Volvo and Yanmar foundations the Sail-Drive is equipped with an adapter plate and can be screwed directly on the existing foundation. The electrical rotating mechanism includes an actuating drive with gearbox, electric regulation system for the drive, a steering lever and display.monitor indicating propeller position
Navigaflex
»» Navigaflex website
The innovative Navigaflex motor has a Patent Pending design in which the motor itself retracts and pivots and can attached to the boat as an outboard or inboard motor. The motor is made with a minimum of parts, a light construction and is adaptable to all boat hulls. The standard motor can also be ordered with a “booster” to double the power for up to 2 minutes.
Navigaflex Motor
![Nagivaflex Rotatable Pod Motor](images/navigaflex9865-2.png?resize=247%2C291&ssl=1)
- Recommended Boat Size: 2 tons / 8m – 16 tons / 18m
kW: 6kW, 8kW, 10kw, 15KW • Voltage: 48 (nominal) • HP: 8, 11, 13.5, 20 - Motor Type: Brushless Permanent Magnet (PMAC) • Water cooled (10kW and 15KW)
- Weight (kg): 54 (4KW) – 68 (15KW)
- Propeller/RPM: 2 blade fixed • RPM: N/A
- Other: Retractable motor, Option to regenerate the current under sails, Digital motor controller with touch screen and mobile phone connected remotely.
- Country of Manufacture: Switzerland
- Price: $US 8,000 – 16,000
Oceanvolt
»» Oceanvolt website
Oceanvolt is one of the best known names in saildrives and its ServoProp regenerating system is regarded as one of the first and best. It is difficult to provide full information about their systems because their website encourages customers to provide information for customized solutions. These are some basics
Click »» here to see Oceanvolt motors for sale from vendors in the Plugboats Market
Oceanvolt SD Saildrive
See more detailed information
![Oceanvolt Electric Boat Motor SD Saildrive](images/oceanvolt-sd-saildrive0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: < 80 ft / 25m
- kW: 6, 8, 10, 15 • Voltage: 48 • HP: 8, 11, 13.5, 20
- Motor Type: Synchronous permanent magnet • Closed circulation liquid cooling provides cooling and lubrication
- Weight (kg): 42.5, 42., 46.5, 46.5
- Propeller/RPM: Propeller not included • RPM: 2200 • Gear Reduction Ratio: 1.93: 1
- Other: Includes: Battery communication kit, hydrogeneration feature • Sold separately: Batteries, Charger, Propeller • Sail Drive with 1.93:1 reduction. Closed circulation liquid cooling provides cooling and lubrication. 10kW and 15kW systems include 15.2kWh Li-ion battery bank, charger
- Country of Manufacture: Finland
- Price: $US 13,500 – 45,000
Oceanvolt Servoprop Saildrive
![Oceanvolt Electric Boat Motor Servoprop Saildrive](images/oceanvolt-servoprop-saildrive0a2d.jpg?resize=298%2C350&ssl=1)
The Oceanvolt ServoProp is a patented variable pitch sail drive that ‘combines a high efficiency sail drive with the most powerful hydro generator on the market’. Unique feature is the possibility to turn the propeller blades more than 180 degrees. The software controlled variable pitch sail drive adjusts the pitch of the propeller blades automatically so that the power generation and power output are optimal. The blades are designed to give the system maximum efficiency in forward, reverse and regeneration. With the blades set to the neutral sailing position, the propeller creates extremely low drag similar to the drag of a feathering propeller. ServoProp is capable of generating more than 1 kW at 7-8 knots & 3 kW at 11-12 knots.
Piktronik
»» Piktronik website
Piktronik is an Austrian-Slovenian company working on the research, development and production of components for electrical vehicles (EV) and boats. Their pods are available in a variety of configurations that vary by the power output. We have noted that below. They also sell motors as complete systems with batteries and chargers.
Piktronik UWM1 – UMW10
On arriving at the linked page, there are links for each motor to download more information
![Piktronik Electric Boat Motor Submersiable Pod UWM1](images/piktronik-uwm1efa3.jpg?resize=298%2C351&ssl=1)
- Recommended Boat Size: N/A
- kW: 1, 2, 5, 6.5, 10 • Voltage: 16, 17, 30, 30, 30 • Current: 50, 92, 120, 150, 200 • HP: 1.4, 2.7, 6.8, 8.8, 13.6
- Motor Type: PMSM (permanent-magnet synchronous)
- Weight (kg): 18, 23, 25, 51, 95
- Propeller/RPM/Torque: 2 blade fixed – 4 blade fixed • RPM: 1100, 1200, 1850, 1200, 1000 • Torque (nM): 7, 14, 27, 51, 95
- Other: Aside from the complete system detailed below the motors alone come in different configurations: 1kW and 2kW: steerable pod or fixed pod, 5kW: steerable pod, fixed pod, transom mount, 6.5kW: steerable pod or transom mount, 10kW: steerable pod or transom mount
- Country of Manufacture: Slovenia
- Price (MSRP):
Piktronik SYS Systems 1kW – 10kW
On arriving at the linked page, there are links for each motor to download more information
![Piktronik Electric Boat Motor Pod Complete System](images/piktronik-sys-system-1kw-10kw0a2d.jpg?resize=298%2C350&ssl=1)
Piktronic sells their motors in complete system kits for each of the motor sizes detailed above. Complete system includes: motor, motor controller, display monitor, cables, siwthces, fuses, battery charger, remote comtrol, steering arm, installation tube, tiller handle, propeller
Rim Drive Technology
Click here to view RIM Drive Technology motors for sale in the Plugboats Marketplace
»» Rim Drive Technology website
Rim Drive technology is a Netherlands company with a line of rim motors in which the propeller blades are affixed to a rim rather than a central hub. There are no wearing parts within the motor and much reduced chance of weeds or other debris snagging or clogging. The motors are available as outboards, pods, azimuths and thrusters. The company offers complete systems or standalone batteries, controllers, monitors and other accessories. The pods in the Guide are sorted as 24V, 48V and 48V+. All pods are available with extended shaft options to reduce hull effects on the rim drive water flow for quieter and smoother operation.
24V Pods
POD 3.0, POD 5.0
![](images/rim-drive-tech-pod-24va052.jpg?resize=300%2C350&ssl=1)
- kW: 3.0, 5.0 • Voltage: 24 • HP: 6.5, 11.0 • Thrust (kg): – 31, 62
- Battery: Sold separately, recommended LiFePO4 available from Rim Drive
- Running Time: Suggested 4-5 hours with recommended Rim Drive battery pack
- Shaft Length (cm): N/A extended shaft length available
- Propeller Diameter (mm): 86, 133
- Weight (motor only) (kg): 3.5, 5.0
- Other: One year warranty for non-commercial use, Completely waterproof (IP68), Efficiency 90+, Includes 2m cable set
- Country of Manufacture: Netherlands
- Price: €3,340, €4,000
48V Pods: 5 motors
POD 0.5, POD 3.0, POD 5.0, POD 11.0, POD 15.0
![](images/rim-drive-tech-pod-24va052.jpg?resize=300%2C350&ssl=1)
- kW: 0.5, 3.0, 5.0, 9, 11, 16 • Voltage: 48 • HP: 1, 6.5, 10, 20, 28 • Thrust (kg): – 7, 31, 62, 156, 250
- Battery: Sold separately, recommended LiFePO4 available from Rim Drive
- Running Time: Up to 7 hours with suggested Rim Drive battery pack
- Shaft Length (cm): N/A extended shaft length available
- Propeller Diameter (mm): 65, 86, 133, 212, 341
- Weight (motor only) (kg): 2.5, 3.5, 5.0, 14.0, 70.0
- Other: One year warranty for non-commercial use, Completely waterproof (IP68), Efficiency 90+, Includes 2m cable set
- Country of Manufacture: Netherlands
- Price: €3,300, €3,400, €4,000, €6,850, €18,000
96V, 110V, 400V Pods
POD 25.0, POD 30.0, POD 50.0
![](images/rim-drive-tech-pod-96va052.jpg?resize=300%2C350&ssl=1)
- kW: 25, 30, 50 • Voltage: 96, 110, 400 • HP: 42, 52, 74 • Thrust (kg): – 380, 400, 750
- Battery: Sold separately, recommended LiFePO4 available from Rim Drive
- Running Time: Average 3 hours with suggested Rim Drive battery pack
- Shaft Length (cm): N/A extended shaft length available
- Propeller Diameter (mm): 341, 341, 341
- Weight (motor only) (kg): 70, 70, 75
- Other: One year warranty for non-commercial use, Completely waterproof (IP68), Efficiency 90+, Includes 2m cable set
- Country of Manufacture: Netherlands
- Price: €25,000, €25,000, €48,000
Steerable Pods (8 models)
Steerable POD 3.0, 5.0, 8.0, 11.0, 15.0, 25.0, 30.0, 50.0
![](images/rim-drive-tech-pod-96va052.jpg?resize=300%2C350&ssl=1)
- kW: 3, 5, 8, 11, 15, 25, 30, 50 • Voltage: 48, 48, 48, 48, 48, 96, 110, 400-550 • HP: 42, 52 • Thrust (kg): 31, 62, 120, 156, 195, 350, 400, 750
- Battery: Sold separately, recommended LiFePO4 available from Rim Drive
- Weight (kg): 21.5, 23, 32, 32, 37, 110, 110, 110
- Other: Rotatable up to 200 degrees, Waterproof hull passthrough, Stainless steel or glass fibre seal available, Salt water resistant (IP68), Motor controller included, Joystick, steering wheel or CAN controlled
- Country of Manufacture: Netherlands
- Price: €7,350, €8,225, €12,075, €12,375, €14,900, €31,995, €31,995, €55,500
SeaDrive
»» SeaDrive website
SeaDrive is a Norwegian manufacturer that has an innovative approach to pods, saildrives and all electric boat motors for which they received a nomination for a 2019 DAME Award. The concept is that the basic motors can be configured: fixed pods, steerable pod, a saildrive or lift-up azimuth side pod – also with the ability to have the propellers arranged for push propulsion or pull propulsion. There are also regenerative versions available. The pod motor systems come in three power ratings: 7.5, 15 and 30.
SeaDrive Modular Pods/Saildrives/Lift-Up Azimuths
![a modular electric boat motor showing different configurations](images/seadrive-electric-boat-motor-pod-modulesa052.jpg?resize=300%2C350&ssl=1)
- Recommended Boat Size: N/A
- kW: 5-7.5, 10-15, 20-30 • Voltage: 48, 96, 144 • Current: NA • HP: 7.5, 15, 32 • Static Thrust: 90, 160, 300
- Motor Type: N/A
- Weight (kg): Motor Weight: Aluminum: 20, Bronze 23. Total Weight differs by configuration
- Propeller/RPM/Torque: Fixed or folding • RPM: N/A • Torque N/A
- Other: re-generative versions and TABLET/PC control.
- Country of Manufacture: Norway
- Price (MSRP):
TEMA
»» TEMA website
TEMA is a Croatian company that makes highly regarded electric motors that can be purchased alone or in systems for marine, industrial and power generation applications. Their saildrive system uses their SPM132 series of very efficient compact permanent magnet motors. The motors operate on either DC or AC voltages and can be powered from battery systems (48 96Vdc) or generators.
TEMA SYS Systems 1kW – 10kW
Download .pdf of Systems configuration
Download .pdf of SPM Motors
![TEMA electric boat motor saildrive system](images/tema-saildrive031f.jpg?resize=299%2C348&ssl=1)
- Recommended Boat Size: N/A
- kW: For each of their models TEMA has dual figures – kW output at 1800/3600 RPM. The 5 models range in listed power from 12/19kW to 35/57kW • Voltage: There 48 and 96 Voltage availble for all models. • Current: 50, 92, 120, 150, 200 • HP: At 1800/3600 RPM they range from 25/39 to 47/76
- Motor Type: PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) • Air cooled
- Weight (kg): 73, 93, 110, 130, 148
- Propeller/RPM/Torque: Propeller not supplied • RPM: 1800/3600 across all motors • Torque (nM): Maximum: 70, 111, 145, 178, 205
- Other: Includes all components: e-motor, motor controller, saildrive, marine throttle, display, plug and play wiring. Efficiency: 95%.
- Country of Manufacture: Croatia
- Price (MSRP):
Torqeedo
»» Torqeedo website
Torqeedo is the world’s leading manufacturer of electric outboards. The company was founded in 2004 by Dr Christoph Ballin and Dr Friedrich Böbel when they decided they could build a better electric motor than the one on the boat Dr. Ballin had just purchased. The company offers trolling motors, inboards, outboards and pod motors and works with BMW’s battery division as well as partnering with many of the world’s premier boat designers and manufacturers. It may be useful to download the full Torqeedo Catalogue
Torqeedo Cruze FP Pod 2.0 – 4.0
Operating instruction .pdfs can be downloaded from link above
![Torqeedo Cruse Electric Boat Motor 2-4 FP Pod](images/torqeedo-cruse-2-4-fp-pod0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: <4 tons
- kW: 2, 4 • Voltage: 2kW: 24, 4kW: 48 • Current: N/A • HP: 6, 9.9 • Static Thrust 155 lbs, 189 lbs
- Motor Type: Brushless External Rotor Motors with Rare-earth Magnets • Operating efficiency 56%.
- Weight (kg): 15.4, 15.8
Propeller/RPM/Torque: 3 blade fixed or folding • RPM: 1300 - Other: GPS on-board computer & display: Real-time speed, input power. Operates with lithium or AGM/lead-gel batteries, exact battery status and remaining range available when using Torqeedo battery. Emergency magnetic kill switch.
- Country of Manufacture: Germany
- Price (MSRP): $US 4,549, 4,999
Torqeedo Cruze FP Pod 10.0
Operating instruction .pdfs can be downloaded from link above
![Torqeedo Cruse Electric Boat Motor 10 FP Pod](images/torqeedo-cruse-10-fp-pod0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: <10 tons
kW: 10 • Voltage: 48 • Current: N/A • HP: 20 • Static Thrust ≤ 405 lbs - Motor Type: Brushless External Rotor Motors with Rare-earth Magnets • Operating efficiency 56%.
- Weight (kg): 33.5
- Propeller/RPM/Torque: 5 blade fixed or folding • RPM: 1400
- Other: Includes: Remote throttle, integrated on-board computer with GPS-based range calculation, 70 mm² cable set (3 m) including fuse and main switch, plug connector. 2 year warranty.
- Country of Manufacture: Germany
- Price (MSRP): $8,999
Torqeedo Cruze FP Saildrive 10.0
Operating instruction .pdfs can be downloaded from link above
![Torqeedo Cruse Electric Boat Motor FP 10 Saildrive](images/torqeedo-cruse-10-fp-saildrive0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: <10 tons
- kW: 10 • Voltage: 48 • Current: N/A • HP: 20 • Static Thrust ≤ 405 lbs
- Motor Type: Brushless External Rotor Motors with Rare-earth Magnets • Operating efficiency 56%.
- Weight (kg): 37
- Propeller/RPM/Torque: 5 blade fixed or folding • RPM: 1400
- Other: Includes: Remote throttle, integrated on-board computer with GPS-based range calculation, 70 mm² cable set (3 m) including fuse and main switch, plug connector. 2 year warranty.
- Country of Manufacture: Germany
- Price (MSRP): $8,999
Torqeedo Deep Blue 25 Saildrive
![Torqeedo Cruse Electric Boat Motor Deep Blue 25 Saildrive](images/torqeedo-deep-blue-25-saildrive0a2d.jpg?resize=298%2C350&ssl=1)
- Recommended Boat Size: <50 tons
- kW: 25 continuous, 33 peak • Voltage: 345 • Current: N/A • HP: 40 • Static Thrust ≤ 405 lbs
- Motor Type: Brushless External Rotor Motors with Rare-earth Magnets • Operating efficiency 55%.
- Weight (kg): 125, 314 total system including 1 battery
- Propeller/RPM: Propeller: not included • RPM: 1200
- Other: Includes: Remote throttle, integrated on-board computer with GPS-based range calculation, 70 mm² cable set (3 m) including fuse and main switch, plug connector. 2 year warranty.
- Country of Manufacture: Germany
- Price (MSRP): On Request with requirements input
Table: Searchable and Sortable
COMPANY | POD/SAILDRIVE | MODEL | BOAT SIZE (TONS) | kW INPUT | kW OUTPUT | HP | VOLTAGE | CURRENT (A) | MOTOR TYPE | WEIGHT kgs | PROP | RPM | PRICE | COUNTRY |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aquamot | Fixed Pod | Trend 1.1 FM | <1.5 | - | 1.1 | 3.5 | - | - | Brushless AC asynchronous • Passive water cooled | 10.2 | Fixed - Folding Optional $US 835 | - | $US 2,200 | Austria |
Aquamot | Fixed Pod | Trend 1.6 FM | <1.8 | - | 1.6 | 5 | - | - | Brushless AC asynchronous • Passive water cooled | 11.3 | Fixed - Folding Optional $US 835 | - | $US 2,600 | Austria |
Aquamot | Fixed Pod | Trend 2.2 FM | <2.5 | - | 2.2 | 6.4 | 24 | - | Brushless AC asynchronous • Passive water cooled | 12.2 | Fixed - Folding Optional $US 835 | - | $US 3,300 | Austria |
Aquamot | Fixed Pod | Trend 4.3 FM | 2.5 - 4 | - | 4.3 | 11 | 48 | - | Brushless AC asynchronous • Passive water cooled | 13.9 | Fixed - Folding Optional $US 835 | - | $US 3,750 | Austria |
Aquamot | Fixed Pod | Trend 11 FM | - | - | 11 | 28 | 48 | - | Brushless AC asynchronous • Passive water cooled | 44.3 | 3 blade fixed | - | $US 6,499 | Austria |
Aquamot | Fixed Pod | Trend 15 FM | - | - | 15 | 35 | 48 | - | Brushless AC asynchronous • Passive water cooled | 45.2 | 3 blade fixed | - | $US 7,750 | Austria |
Aquamot | Fixed Pod | Trend 20 FM | - | - | 20 | 40 | 96 | - | Brushless AC asynchronous • Passive water cooled | 47.6 | 3 blade fixed | - | $US 8,850 | Austria |
Aquamot | Fixed Pod | Trend 25 FM | - | - | 25 | 45 | 96 | - | Brushless AC asynchronous • Passive water cooled | 48.9 | 3 blade fixed | - | $US 9,915 | Austria |
Aquamot | Fixed Pod | Professional F10e | - | 1.090 | 1 | 1.3 | 24 | 45 | AC asynchronous • Passive water cooled | 12 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F20e | - | 2.180 | 2 | 2.6 | 24 | 87 | AC asynchronous • Passive water cooled | 19 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F30e | - | 3.26 | 3 | 3.9 | 36 | 89 | AC asynchronous • Passive water cooled | 20 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F41e | - | 4.45 | 4.1 | 5.33 | 48 | 93 | AC asynchronous • Passive water cooled | 21 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F80e | - | 8.690 | 8 | 10.4 | 48 | 178 | AC asynchronous • Passive water cooled | 33 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F100e | - | 10.87 | 10 | 13 | 72 | 152 | AC asynchronous • Passive water cooled | 35 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F110e | - | 11.95 | 11 | 14.3 | 48 | 249 | AC asynchronous • Passive water cooled | 46 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F150e | - | 16.30 | 15 | 19.5 | 48 | 339 | AC asynchronous • Passive water cooled | 47 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F200e | - | 21.69 | 20 | 26 | 96 | 225 | AC asynchronous • Passive water cooled | 49 | 3 blade fixed | - | - | Austria |
Aquamot | Fixed Pod | Professional F250e | - | 27.08 | 25 | 32.5 | 96 | 281 | AC asynchronous • Passive water cooled | 50 | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF10e | - | 1.090 | 1 | 1.3 | 24 | 45 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF20e | - | 2.180 | 2 | 2.6 | 24 | 87 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF30e | - | 3.26 | 3 | 3.9 | 36 | 89 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF41e | - | 4.45 | 4.1 | 5.33 | 48 | 93 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF80e | - | 8.690 | 8 | 10.4 | 48 | 178 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF100e | - | 10.87 | 10 | 13 | 72 | 152 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF110e | - | 11.95 | 11 | 14.3 | 48 | 249 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF150e | - | 16.30 | 15 | 19.5 | 48 | 339 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF200e | - | 21.69 | 20 | 26 | 96 | 225 | - | - | 3 blade fixed | - | - | Austria |
Aquamot | Steerable Pod | Professional UF250e | - | 27.08 | 25 | 32.5 | 96 | 281 | - | - | 3 blade fixed | - | - | Austria |
Bellmarine | Saildrive | SailMaster 2A | - | 1.5 | 2 | 2.5 | 48 | - | Permanent Magnet AC, Air cooled | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 3W | - | 2.5 | 3 | 4 | 48 | - | Permanent Magnet AC, Liquid cooled | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 5A | - | 4 | 5 | 6.5 | 48 | - | Permanent Magnet AC, Air cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 7A | - | 5 | 7 | 9 | 48 | - | Permanent Magnet AC, Air cooled | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 7W | - | 5 | 7 | 9 | 48 | - | Permanent Magnet AC, Liquid cooled | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 8A | - | 6 | 8 | 10.5 | 96 | - | Permanent Magnet AC, Air cooled | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 10A | - | 8 | 10 | 13 | 48 | - | Permanent Magnet AC, Air cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 10W | - | 8 | 10 | 13 | 48 | - | Permanent Magnet AC, Liquid cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 15A | - | 10 | 15 | 20 | 96 | - | Permanent Magnet AC, Air cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 15W | - | 10 | 15 | 20 | 48 | - | Permanent Magnet AC, Liquid cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 20A | - | 15 | 20 | 25 | 96 | - | Permanent Magnet AC, Air cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Bellmarine | Saildrive | SailMaster 20W | - | 15 | 20 | 25 | 96 | - | Permanent Magnet AC, Liquid cooled • Regeneration available | - | Supplied without propeller. | 1500: Motor 750: Propeller | - | Netherlands |
Combi | Saildrive | Combi Nautica CN1000 | - | - | 1 | 4 | 24 | 42 | - | - | 3 blade fixed, 210 mm | 1050 | - | Netherlands |
Combi | Saildrive | Combi Nautica CN1500 | - | - | 1.5 | 5 | 24 | 63 | - | - | 3 blade fixed, 220 | 1350 | - | Netherlands |
Combi | Saildrive | Combi Nautica CN2000 | - | - | 2 | 6 | 48 | 42 | - | - | 3 blade fixed, 220 | 1150 | - | Netherlands |
Combi | Saildrive | Combi Nautica CN2500 | - | - | 2.5 | 7 | 48 | 52 | - | - | 3 blade fixed, 240 | 1500 | - | Netherlands |
Combi | Saildrive | Combi Nautica CN3000 | - | - | 3 | 8 | 48 | 63 | - | - | 3 blade fixed, 240 | 1050 | - | Netherlands |
Combi | Saildrive | Combi Nautica CN3500 | - | - | 3.5 | 9 | 48 | 73 | - | - | 3 blade fixed, 240 | 1310 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN1000 | - | - | 1 | 4 | 24 | 42 | - | - | 3 blade fixed, 210 mm | 1050 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN1500 | - | - | 1.5 | 5 | 24 | 63 | - | - | 3 blade fixed, 220 | 1350 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN2000 | - | - | 2 | 6 | 48 | 42 | - | - | 3 blade fixed, 220 | 1150 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN2500 | - | - | 2.5 | 7 | 48 | 52 | - | - | 3 blade fixed, 240 | 1500 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN3000 | - | - | 3 | 8 | 48 | 63 | - | - | 3 blade fixed, 240 | 1050 | - | Netherlands |
Combi | Steerable Pod | Combi Nautica CN3500 | - | - | 3.5 | 9 | 48 | 73 | - | - | 3 blade fixed, 240 | 1310 | - | Netherlands |
Electric Yacht | Saildrive | QuietTorque™ 10.0 Sail Drive | <6 | 10 | 10.5 | 48 | 200DC | Brushless PMAC • Programmable regeneration | 45 | 2 or 3 blade, 12” - 16” | - | $US 11,995 | USA | |
Electric Yacht | Saildrive | QuietTorque™ 20.0 Sail Drive | <12 | 20 | 21 | 48 | 400DC | Brushless PMAC • Programmable regeneration. | 77 | 2 or 3 blade, 12” - 18” | - | $US 14,695 | USA | |
Electric Yacht | Saildrive | QuietTorque™ 30.0 LC Sail Drive | <14 | 30 | 48 | 48 | 400 - 600 Ah | Brushless PMAC X 2, Liquid Cooled • Programmable regeneration | 100 | - | - | $US 19,995 | USA | |
Electric Yacht | Saildrive | QuietTorque™ 45.0 LC Sail Drive | <17 | 45 | 60 | 72 | 300 - 600 Ah | Brushless PMAC X 2, Liquid Cooled • Programmable regeneration. | 100 | - | - | $US 21,495 | USA | |
Electric Yacht | Saildrive | QuietTorque™60.0 LC Sail Drive | <22 | 75 | 65 | 96 | 300 - 600 Ah | Brushless PMAC X 2, Liquid Cooled • Programmable regeneration. | 106 | - | - | $US 19,995 | USA | |
ePropulsion | Fixed Pod | Pod Drive Evo 1.0 | - | 1 | 3 | 40.7 | 25A | - | 5.3 | 2 blade, 28 × 14.7 cm, 11 × 5.8 inches | 1500 | - | Hong Kong/China | |
ePropulsion | Fixed Pod | Pod Drive Evo 3.0 | - | 3 | 6 | 48 | 62.5A | - | 12 | 2 blade, 26 × 17.1 cm, 10.2 × 6.7 inches | 2300 | - | Hong Kong/China | |
E-Tech | Fixed Pod | E-Tech 2 POD | - | - | 1.8 | 2.34 | 24 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1100 min | - | Poland |
E-Tech | Fixed Pod | E-Tech 4 POD | - | - | 4.3 | 5.59 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1200 min | - | Poland |
E-Tech | Fixed Pod | E-Tech 7 POD | - | - | 7.1 | 9.23 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1050 min | - | Poland |
E-Tech | Fixed Pod | E-Tech 10 POD | - | - | 10 | 13 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1300 min | - | Poland |
E-Tech | Fixed Pod | E-Tech 15 POD | - | - | 15 | 19.5 | 72 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1600 min | - | Poland |
E-Tech | Fixed Pod | E-Tech 20 POD | - | - | 20 | 26 | 96 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1900 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 2 POD | - | - | 1.8 | 2.34 | 24 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1100 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 4 POD | - | - | 4.3 | 5.59 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1200 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 7 POD | - | - | 7.1 | 9.23 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Air cooled | - | not included | 1050 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 10 POD | - | - | 10 | 13 | 48 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1300 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 15 POD | - | - | 15 | 19.5 | 72 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1600 min | - | Poland |
E-Tech | Steerable Pod | E-Tech 20 POD | - | - | 20 | 26 | 96 | - | Brushless, perm.magnet electric engine (BLDC), Water cooled | - | not included | 1900 min | - | Poland |
E-Tech | Fixed Pod | High Torque 40 PODH | - | - | 40 | 52 | 150 | - | Water cooled, Type - | - | 2000 min | - | Poland | |
Fischer Panda | Fixed Pod | EasyBox A06-140-6-AZ | - | - | 3.8/7.5 | 5.0 / 9.9 | 48 | - | Brushless Permanent Magnet (PMAC) | 18.7 | 1250 / 2500 | - | Germany | |
Fischer Panda | Fixed Pod | EasyBox A50-160-6-AZ | - | - | 10 | 13 | 48 | - | Brushless Permanent Magnet (PMAC) | 50 | 1200 | - | Germany | |
Fischer Panda | Fixed Pod | EasyBoxB00-150-8-AZ | - | - | 10 | 13 | 48 | - | Brushless Permanent Magnet (PMAC) | 76 | 600 | - | Germany | |
Fischer Panda | Fixed Pod | EasyBox B00-150-8-AZ | - | - | 20 | 25 | 48 | - | Brushless Permanent Magnet (PMAC) | 76 | 1200 | - | Germany | |
Fischer Panda | Fixed Pod | EasyBox B00-300-8-AZ 20 kW | - | - | 20 | 25 | 48 | - | Brushless Permanent Magnet (PMAC) | 120 | 600 | - | Germany | |
Fischer Panda | Fixed Pod | Easy Box High Voltage B00-360-8-AZ | - | - | 50 / 80 | 5/8 | 360 | - | - | 138 | 1200 / 1900 | - | Germany | |
Fischer Panda | Fixed Pod | Easy Box High Voltage 100kW-420 | - | - | 100 | 130 | 420 | - | - | - | 1200 | - | Germany | |
Gardenergy | Fixed Pod | POD N.4.2 | - | 2 | - | 2.6 | 24 | - | PMAC | - | 3 blade fixed, folding available | $US 3,970 | Italy | |
Gardenergy | Fixed Pod | POD N.8.4 | - | 4.3 | 2.508 | 5.59 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1450 max | $US 4,200 | Italy |
Gardenergy | Fixed Pod | POD N.12.6 | - | 6 | 3.673 | 7.8 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1600 max | $US 4,750 | Italy |
Gardenergy | Fixed Pod | POD N.16.8 | - | 8 | 5.126 | 10.4 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1750 max | $US 4,975 | Italy |
Gardenergy | Fixed Pod | POD N.20.1 | - | 10 | 6.912 | 13 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1950 max | $US 5,400 | Italy |
Gardenergy | Steerable Pod | POD S.4.2 | - | 2 | 1.5 | 2.0 | 24 | - | PMAC | - | 3 blade fixed, folding available | - | $US 5,850 | Italy |
Gardenergy | Steerable Pod | POD S.8.4 | - | 4.3 | 2.5 | 3.3 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1450 max | $US 6,075 | Italy |
Gardenergy | Steerable Pod | POD S.12.6 | - | 6 | 3.7 | 4.8 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1600 max | $US 6,400 | Italy |
Gardenergy | Steerable Pod | POD S.16.8 | - | 8 | 5.1 | 6.7 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1750 max | $US 6,620 | Italy |
Gardenergy | Steerable Pod | POD S.20.1 | - | 10 | 6.9 | 9.0 | 48 | - | PMAC | - | 3 blade fixed, folding available | 1950 max | $US 7,075 | Italy |
Krautler | Fixed Pod | Fixed Pod GP 0,5 | <.4 | 0.5 | 0.4 | 0.5 | 24 | 21 | DC motor with permanent magnets, continuous control | 14 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod GP 0.8 | .4-.7 | 0.8 | 0.7 | 1 | 24 | 34 | DC motor with permanent magnets, continuous control | 15 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod GP 1.6 | .7-1.4 | 1.6 | 1.4 | 1.8 | 24 | 67 | DC motor with permanent magnets, continuous control | 20 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod GP 2.2 | 1-4-1.9 | 2.2 | 1.9 | 2.5 | 36 | 61 | DC motor with permanent magnets, continuous control | 20 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 1.8 | <1.8 | 2.4 | 1.8 | 2.3 | 24 | 100 | brushless three phase asynchronous motor | 21 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 2.0 | 1.8-2 | 2.6 | 2.0 | 2.5 | 24 | 107 | brushless three phase asynchronous motor | 29 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 4.0 | 2-4 | 5.0 | 4.0 | 5 | 48 | 104 | brushless three phase asynchronous motor | 29 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 8.0 | 4 -8 | 9.7 | 8.0 | 10 | 48 | 202 | brushless three phase asynchronous motor | 40 | 3 blade folding or fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 10.0 | 8-10 tons | 12.0 | 10 | 13 | 48 | 250 | brushless three phase asynchronous motor | 50 | 3 blade folding or fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod GPRV 0.5 | Sailboat: up to .4 tons Powerboat: .2 tons | 0.5 | 0.4 | 0.5 | 24 | 21 | DC motor with permanent magnets, continuous control | 15 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod GPRV 0.8 | Sailboat: .4 - .7 tons Powerboat: .2 - .3 tons | 0.8 | 7 | 9.0 | 24 | 34 | DC motor with permanent magnets, continuous control | 18 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod GPRV 1.6 | Sailboat: .7 - 1.4 tons Powerboat: .3 - .6 tons | 1.6 | 1.4 | 1.8 | 24 | 67 | DC motor with permanent magnets, continuous control | 21 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod GPRV 2.2 | Sailboat: up to .1.9 tons Powerboat: .6 - .8 tons | 2.2 | 1.9 | 2.5 | 36 | 61 | DC motor with permanent magnets, continuous control | 21 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod ACR 1.8 | Sailboat: up to 1.8 tons Powerboat: up to .7 tons | 2.4 | 1.8 | 2.3 | 24 | 100 | brushless three phase asynchronous motor | 22 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod ACR 2.0 | Sailboat: 1.8 - 2 tons Powerboat: .7 - .8 tons | 2.6 | 2.0 | 2.5 | 24 | 107 | brushless three phase asynchronous motor | 30 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod ACR 4.0 | Sailboat: 2 - 4 tons Powerboat: .8 - 1.6 tons | 5.0 | 4.0 | 5 | 48 | 104 | brushless three phase asynchronous motor | 30 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod ACR 8.0 | Sailboat: 4 - 8 tons Powerboat: 1.6 - 3.2. tons | 9.7 | 8.0 | 10 | 48 | 202 | brushless three phase asynchronous motor | 44 | 3 fixed | - | - | Austria |
Krautler | Fixed Pod | Fixed Pod ACV 10.0 | Sailboat: <10 tons Powerboat: <4.0 tons | 12.0 | 10 | 13 | 48 | 250 | brushless three phase asynchronous motor | 54 | 3 fixed | - | - | Austria |
Krautler | Saildrive | Rotatable Rudder Mount Pod SCR 15.0 | Sailboat: <15 tons Powerboat: <6.0 tons | 17 | 15 | 19.5 | 48 | 355 | - | 79 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Compact SDK 2.0AC | <2 | 2.5 | 2.0 | 2.6 | 24 | 104 | brushless three phase asynchronous motor, continuous control | 42 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Compact SDK 3.0AC | <3 | 3.6 | 3.0 | 3.9 | 36 | 100 | brushless three phase asynchronous motor, continuous control | 42 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Compact SDK 4.0AC | <4 | 4.7 | 4.0 | 5.2 | 48 | 99 | brushless three phase asynchronous motor, continuous control | 42 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDK 2.5 AC | Sailboat: up to 2.5 tons Powerboat: up to 1.0 tons | 3.1 | 2.5 | 3.25 | 24 | 130 | brushless three phase asynchronous motor, continuous control | 45 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDK 3.5 AC | Sailboat: 2.5 - 3.5 tons Powerboat: 1.0 - 1.4 tons | 4.1 | 3.5 | 4.55 | 36 | 115 | brushless three phase asynchronous motor, continuous control | 45 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDK 4.0 AC | Sailboat: 3.5 - 4.0 tons Powerboat: 1.4 - 1.6 tons | 4.7 | 4.0 | 5.2 | 24 | 196 | brushless three phase asynchronous motor, continuous control | 45 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDK 4.3 AC | Sailboat: 4.0 - 4.3 tons Powerboat: 1.6 - 1.7 tons | 5.0 | 4.3 | 5.59 | 48 | 104 | brushless three phase asynchronous motor, continuous control | 45 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDK 6.0 AC | Sailboat: 4.3 - 6.0 tons Powerboat: 1.7 - 2.4 tons | 7.1 | 6.0 | 7.8 | 48 | 148 | brushless three phase asynchronous motor, continuous control | 45 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH 8.0 AC | Sailboat: up to 8.0 tons Powerboat: up to 3.2 tons | 9.4 | 8.0 | 10.4 | 48 | 196 | brushless three phase asynchronous motor, continuous control | 80 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH 10.0 AC | Sailboat: 8.0 - 10.0 tons Powerboat: 3.2 - 4.0 tons | 11.8 | 10.0 | 13.0 | 48 | 246 | brushless three phase asynchronous motor, continuous control | 91 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH 15.0 AC | Sailboat: 10.0 - 15.0 tons Powerboat: 4.0 - 6.0 tons | 17.1 | 15.0 | 19.5 | 96 | 178 | brushless three phase asynchronous motor, continuous control | 91 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH Watercooled 15.0 AC | Sailboat: up to 15.0 tons Powerboat: up to 6.0 tons | 17.7 | 15.0 | 19.5 | 48 | 370 | brushless three phase asynchronous motor, continuous control | 91 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH Watercooled 20.0 AC | Sailboat: 15.0 - 20.0 tons Powerboat: 6.0 - 8.0 tons | 22.8 | 20.0 | 26.0 | 96 | 237 | brushless three phase asynchronous motor, continuous control | 101 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH Watercooled 25.0 AC | Sailboat: 20.0 - 25.0 tons Powerboat: 8.0 - 10.0 tons | 28.4 | 25.0 | 32.5 | 96 | 296 | brushless three phase asynchronous motor, continuous control | 101 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Fixed SDKH Watercooled 30.0 AC | Sailboat: 25.0 - 30.0 tons Powerboat: 10.0 - 12.0 tons | 34.1 | 30.0 | 39.0 | 144 | 237 | brushless three phase asynchronous motor, continuous control | 104 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 2.5 AC | <1.0 (Powerboat) | 3.1 | 2.5 | 3.3 | 24 | 130 | brushless three phase asynchronous motor, continuous control | 52 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 4.0 AC | <1.6 (Powerboat) | 4.7 | 4.0 | 5.2 | 24 | 196 | brushless three phase asynchronous motor, continuous control | 52 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 4.3 AC | <1.7 (Powerboat) | 5.0 | 4.3 | 5.6 | 48 | 104 | brushless three phase asynchronous motor, continuous control | 52 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 6.0 AC | <2.4 (Powerboat) | 7.1 | 6.0 | 7.8 | 48 | 148 | brushless three phase asynchronous motor, continuous control | 52 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 8.0 AC | <3.2 (Powerboat) | 9.4 | 8.0 | 10.4 | 48 | 196 | brushless three phase asynchronous motor, continuous control | 83 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 10.0 AC | <4 (Powerboat) | 11.8 | 10.0 | 13.0 | 48 | 246 | brushless three phase asynchronous motor, continuous control | 94 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDK-D 15.0 AC | <6 (Powerboat) | 17.1 | 15.0 | 19.5 | 96 | 178 | brushless three phase asynchronous motor, continuous control | 94 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDKH-D Watercooled 15.0 AC | <6 (Powerboat) | 17.7 | 15.0 | 19.5 | 48 | 370 | brushless three phase asynchronous motor, continuous control | 97 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDKH-D Watercooled 20.0 AC | <8 (Powerboat) | 22.8 | 20.0 | 26.0 | 96 | 237 | brushless three phase asynchronous motor, continuous control | 104 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDKH-D Watercooled 25.0 AC | <10 (Powerboat) | 28.4 | 25.0 | 32.5 | 96 | 296 | brushless three phase asynchronous motor, continuous control | 104 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Mechanical Rotatable SDKH-D Watercooled 30.0 AC | <12 (Powerboat) | 34.1 | 30.0 | 39.0 | 144 | 237 | brushless three phase asynchronous motor, continuous control | 104 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 2.5 AC | <1.0 (Powerboat) | 3.1 | 2.5 | 3.3 | 24 | 130 | brushless three phase asynchronous motor, continuous control | 58 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 4.0 AC | <1.6 (Powerboat) | 4.7 | 4.0 | 5.2 | 24 | 196 | brushless three phase asynchronous motor, continuous control | 58 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 4.3 AC | <1.7 (Powerboat) | 5.0 | 4.3 | 5.6 | 48 | 104 | brushless three phase asynchronous motor, continuous control | 58 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 6.0 AC | <2.4 (Powerboat) | 7.1 | 6.0 | 7.8 | 48 | 148 | brushless three phase asynchronous motor, continuous control | 58 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 8.0 AC | <13.2(Powerboat) | 9.4 | 8.0 | 10.4 | 48 | 196 | brushless three phase asynchronous motor, continuous control | 87 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 10.0 AC | <4 (Powerboat) | 11.8 | 10.0 | 13.0 | 48 | 246 | brushless three phase asynchronous motor, continuous control | 98 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDK-D 15.0 AC | <6(Powerboat) | 17.1 | 15.0 | 19.5 | 96 | 178 | brushless three phase asynchronous motor, continuous control | 98 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDKH-D Watercooled 15.0 AC | <6 (Powerboat) | 17.7 | 15.0 | 19.5 | 48 | 370 | brushless three phase asynchronous motor, continuous control | 98 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDKH-D Watercooled 20.0 AC | <8 (Powerboat) | 22.8 | 20.0 | 26.0 | 96 | 237 | brushless three phase asynchronous motor, continuous control | 108 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDKH-D Watercooled 25.0 AC | <10 (Powerboat) | 28.4 | 25.0 | 32.5 | 96 | 296 | brushless three phase asynchronous motor, continuous control | 108 | not included | - | - | Austria |
Krautler | Saildrive | SailDrive Electrical Rotatable SDKH-D Watercooled 30.0 AC | <12 (Powerboat) | 34.1 | 30.0 | 39.0 | 144 | 237 | brushless three phase asynchronous motor, continuous control | 108 | not included | - | - | Austria |
Navigaflex | Saildrive Pod | Navigaflex 6 | <2 | - | 6 | 8 | 48 | - | Brushless Permanent Magnet (PMAC) • Option to regenerate | 54 | 2 blade fixed | - | $US 8,000 | Switzerland |
Navigaflex | Saildrive Pod | Navigaflex 10 | <5 | - | 8 | 11 | 48 | - | Brushless Permanent Magnet (PMAC) • Option to regenerate | 58 | 2 blade fixed | - | $US 10,000 | Switzerland |
Navigaflex | Saildrive Pod | Navigaflex 10 | <8 | - | 10 | 13.5 | 48 | - | Brushless Permanent Magnet (PMAC) • Water cooled (10kW and 15KW) • Option to regenerate | 62 | 2 blade fixed | - | $US 13,000 | Switzerland |
Navigaflex | Saildrive Pod | Navigaflex 15 | <10 | - | 15 | 20 | 48 | - | Brushless Permanent Magnet (PMAC) • Water cooled (10kW and 15KW) • Option to regenerate | 68 | 2 blade fixed | - | $US 16,000 | Switzerland |
Oceanvolt | Saildrive Pod | Saildrive 6 | <6.6 | - | 6 | 15 | - | - | Synchronous permanent magnet • Regeneration/Hydrogeneration | 42.5 | Sold separately | 2200 | $US 13,500 | Finland |
Oceanvolt | Saildrive Pod | Saildrive 8 | <6.6 | - | 8 | 25 | - | - | Synchronous permanent magnet • Regeneration/Hydrogeneration | 42.5 | Sold separately | 2200 | $US 14,600 | Finland |
Oceanvolt | Saildrive Pod | Saildrive 10 | <9 | - | 10 | 20-30 | - | - | Synchronous permanent magnet • Regeneration/Hydrogeneration | 46.5 | Sold separately | 2200 | $US 37,500 | Finland |
Oceanvolt | Saildrive Pod | Saildrive 15 | <9 | - | 15 | 20-30 | - | - | Synchronous permanent magnet • Regeneration/Hydrogeneration | 46.5 | Sold separately | 2200 | $US 45,000 | Finland |
Oceanvolt | Saildrive Pod | Saildrive 10 ServoProp | <9 | - | 10 | 20-30 | - | - | - | - | patented folding | - | - | Finland |
Piktronik | UWM1 | - | - | 1.0 | 1.4 | 16 | 50 | Underwater-PMSM (3~) | 18 | 3 blade folding | 1100 | - | Germany | |
Piktronik | UWM2 | - | - | 2.0 | 2.7 | 17 | 92 | Underwater-PMSM (3~) | 23 | 3 blade folding | 1200 | - | Germany | |
Piktronik | UWM5 | - | - | 5.0 | 6.8 | 30 | 120 | Underwater-PMSM (3~) | 25 | 3 blade fixed | 1850 | - | Germany | |
Piktronik | UWM6 | - | - | 6.5 | 8.8 | 30 | 150 | Underwater-PMSM (3~) | 29 | 3 blade fixed | 1200 | - | Germany | |
Piktronik | UWM10 | - | - | 10.0 | 13.6 | 30 | 200 | Underwater-PMSM (3~) | 37 | 3 blade fixed | 1000 | - | Germany | |
Piktronik | Saildrive | UWM5 - Saildrive | - | - | 5.0 | 6.8 | 30 | 120 | Underwater-PMSM (3~) | 25 | 3 blade fixed | 1850 | - | Germany |
RAD Propulsion | Saildrive or Pod | RAD40 | - | - | 40 peak | 60 | compatible with 110V (nominal) system | - | RIM | 60 | hubless rim drive, 300mm propeller diameter | - | N/A | UK |
Rim Drive Technology | Fixed Pod | PR086-POD-M-24V | <1 | 3 | 6.5 | 24 | 125 | RIM | 3.5 | hubless rim drive, 86mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR0133-POD-M-24V | <2 | 5 | 11 | 24 | 210 | RIM | 5 | hubless rim drive, 86mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR065-POD-M-48V | <.2 | .5 | 1 | 48 | 11 | RIM | 2.5 | hubless rim drive, 65mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR086-POD-M-48V | <1 | 3.0 | 6.5 | 48 | 63 | RIM | 3.5 | hubless rim drive, 86mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR133-POD-M-48V | <2 | 5.0 | 10 | 48 | 104 | RIM | 5 | hubless rim drive, 133mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR212-POD-M-48V | <5 | 11 | 20 | 48 | 230 | RIM | 14 | hubless rim drive, 212mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR341-POD-M-48V | <6 | 16 | 28 | 48 | 334 | RIM | 70 | hubless rim drive, 341mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR341-POD-M-96V | <10 | 25 | 42 | 96 | 260 | RIM | 70 | hubless rim drive, 341mm propeller diameter | - | N/A | Netherlands | |
Rim Drive Technology | Fixed Pod | PR341-POD-M-110V | <11 | 30 | 52 | 110 | 273 | RIM | 70 | hubless rim drive, 341mm propeller diameter | - | N/A | Netherlands | |
SeaDrive | Fixed Pod | SeaDrive 5-7.5 | - | 5-7.5 | 7.5 | 48 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Fixed Pod | SeaDrive 10-15 | - | 10-15 | 15 | 96 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Fixed Pod | SeaDrive 20-30 | - | 20-30 | 32 | 144 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Saildrive | SeaDrive 5-7.5 | - | 5-7.5 | 7.5 | 48 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Saildrive | SeaDrive 10-15 | - | 10-15 | 15 | 96 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Saildrive | SeaDrive 20-30 | - | 20-30 | 32 | 144 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Steerable Pod | SeaDrive 5-7.5 | - | 5-7.5 | 7.5 | 48 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Steerable Pod | SeaDrive 10-15 | - | 10-15 | 15 | 96 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
SeaDrive | Steerable Pod | SeaDrive 20-30 | - | 20-30 | 32 | 144 | - | N/A | 20 (Aluminum) 23 (Bronze): Motor alone. Total weight differs with configuration | 4 blade fixed or folding | - | - | Norway | |
TEMA | Saildrive | TEMA SPM132-1 | - | - | 1800 RPM: 12 3600 RPM: 19 | 16-25 | 48/96 | - | PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) Air cooled | 73 | not provided | 1800/3600 | - | Croatia |
TEMA | Saildrive | TEMA SPM132-12 | - | - | 1800 RPM: 19 3600 RPM: 29 | 25-39 | 48/96 | - | PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) Air cooled | 93 | not provided | 1800/3600 | - | Croatia |
TEMA | Saildrive | TEMA SPM132-2 | - | - | 1800 RPM: 25kW - 33HP 3600 RPM: 41kW-55HP | 33-55 | 48/96 | - | PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) Air cooled | 110 | not provided | 1800/3600 | - | Croatia |
TEMA | Saildrive | TEMA SPM132-22 | - | - | 1800 RPM: 30 3600 RPM: 50 | 45-67 | 48/96 | - | PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) Air cooled | 130 | not provided | 1800/3600 | - | Croatia |
TEMA | Saildrive | TEMA SPM132-3 | - | - | 1800 RPM: 35 3600 RPM: 57 | 47-76 | 48/96 | - | PMAC (Permanent Magnet AC), PMS (Permanent Magnet Synchronous) Air cooled | 148 | not provided | 1800/3600 | - | Croatia |
Torqeedo | Fixed Pod | Cruise 2.0 FP | <4 | 2 | 1.12 | 5 | 24 | - | Brushless External Rotor Motors with Rare-earth Magnets | 15.4 | 3 blade fixed or folding | 1300 | $US 4,549 | Germany |
Torqeedo | Fixed Pod | Cruise 4.0 FP | <4 | 4 | 2.24 | 8 | 48 | - | Brushless External Rotor Motors with Rare-earth Magnets | 15.8 | 3 blade fixed or folding | 1300 | $US 4,999 | Germany |
Torqeedo | Fixed Pod | Cruise 10.0 FP | <10 | 10 | 5.6 | 20 | 48 | - | Brushless External Rotor Motors with Rare-earth Magnets | 33.5 | 5 blade fixed or folding | 1400 | $US 8,999 | Germany |
Torqeedo | Saildrive | Cruise 10.0 FP Saildrive | <10 | 10 | 5.6 | 20 | 48 | - | Brushless External Rotor Motors with Rare-earth Magnets | 37 | 5 blade fixed or folding | 1400 | $US 8,999 | Germany |
Torqeedo | Saildrive | Deep Blue 25 SD Saildrive | <50 | 25 continuous, 33 peak | 16.2 | 40 | 345 | - | Brushless External Rotor Motors with Rare-earth Magnets | 125, 314 total system including 1 battery | not included | 1200 | - | Germany |
